E600 Multi-functional Pure Electric Sweeper
Catalog：
CityElf-E600 pure electric multifunctional compact sweeper is the first pure electric sweeper produced by Easyfast.
keyword：Snow Blade
Detail
PRODUCT FEATURES
CityElf-E600 pure electric multifunctional compact sweeper is the first pure electric sweeper produced by Easyfast.
Its biggest feature is its light body and flexible steering, making it a perfect solution for cleaning sidewalks, non-motorized vehicle lanes, parking lots, park squares and back streets and alleys.
Thanks to its versatile design, it can be quickly and easily converted into a professional road sweeper or an efficient snowplow for winter service, making this mainframe not only extremely versatile but also particularly economical due to the wide range of application options it offers.
Good visibility The panoramic cab design has a good working field of vision, which is a feature of this sweeper. When sweeping, the driver can clearly see the brush edge situation. A good working field of vision is the guarantee of edge cleaning ability and the prerequisite for work safety.
One machine for multiple purposes This sweeper is designed with multiple hydraulic outputs and electronic control outputs to provide hydraulic oil source and control circuit for work aids. The installation mechanism is designed as a quick-install structure, and one person can complete the installation and removal of all work aids.
Friendly after-sales service The convenience of maintenance and repair has been fully considered when designing this sweeper. After nearly ten years of production and sales, we have sufficient after-sales maintenance experience for this sweeper.
Application extension The quick installation hydraulic output interface can provide unlimited possibilities for the design and expansion of multiple auxiliary tools and new auxiliary tools.
Technical Parameters
| Item | Parameter |
| External dimensions | 3260×1150×2050mm(including scanning) |
| power | Lithium iron phosphate battery pack |
| Driving method | Pure electric drive bridge |
| Steering mode | Fully hydraulic articulated steering |
| Operational principle | Sweeping suction type |
| Cleaning width | 1500mm |
| Garbage dumping method | High level self dumping |
| Turning radius (outer drive wheel) | 1850mm |
| Maximum cleaning speed | 6km/h |
| Maximum driving speed | 16km/h |
| Gradient | 25% |
| Comprehensive working time for single charging | 6-8h |

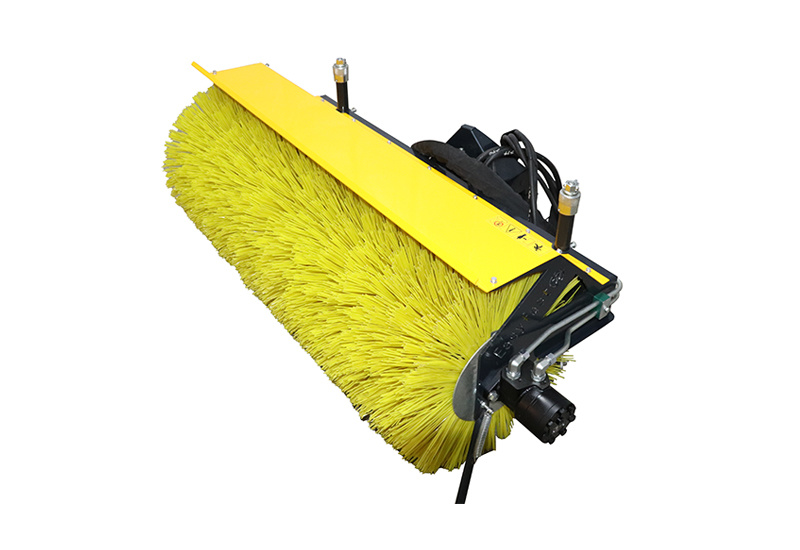

Snow removal roller brush The front snow removal roller brush is a typical auxiliary tool for the main machine, and can be quickly disassembled and assembled with the main machine without tools. The hydraulic motor drives the snow removal roller brush with strong power and stable quality. The hydraulic cylinder can flexibly control the left and right swing angles. It is often used for snow removal in narrow areas such as residential areas, sidewalks, and non-motorized vehicle lanes.
Integrated snow pushing shovel The integrated snow pusher has a simple structure and is economical to manufacture. It is the first choice for snow shoveling in small areas in winter. It is designed with a mechanical spring obstacle avoidance mechanism, and the shovel blade can be made of wear-resistant nylon or wear-resistant steel plate.

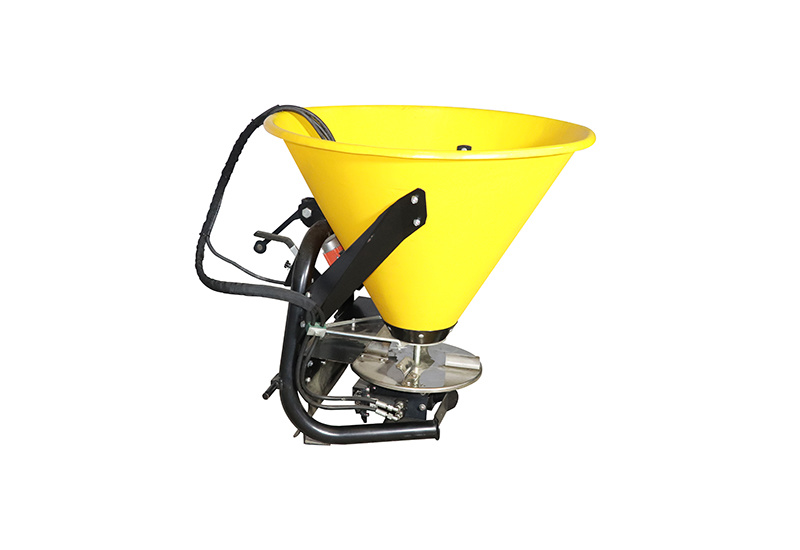

Snow melting agent spreader The deicing agent spreader has a simple and sturdy structure and a sophisticated design. It can control the left and right side spreading and the rear side spreading. The deicing agent storage bucket is integrally rotomolded, and the spreading plate is made of stainless steel, fully considering the lightweight and corrosion resistance.
Handheld extended straw The handheld extension straw is an integral backpack structure and can be easily disassembled. By using the vacuum negative pressure in the trash can, the handheld straw can be connected to the right side of the trash can to clean up fallen leaves and other garbage in green belts, ditches and other places where the sweeper is difficult to enter.

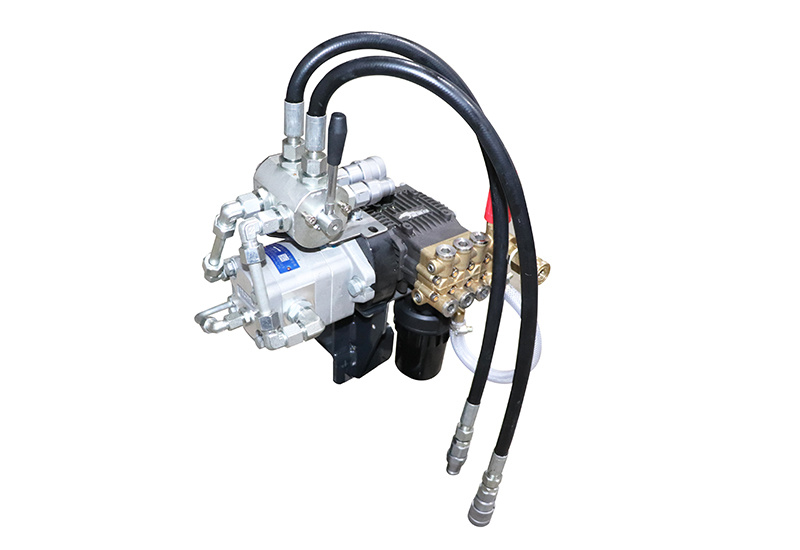

Front hydraulic water pump The three-plunger high-pressure water pump is driven by a gear motor, sharing the hydraulic oil source of the sweeping motor, switched by a manual valve, and connected by a hydraulic quick structure. The hydraulic water pump assembly can be easily disassembled as a whole, and the hydraulic water pump assembly includes a hydraulic motor, a high-pressure water pump, a switching hydraulic valve, a water filter, etc.
