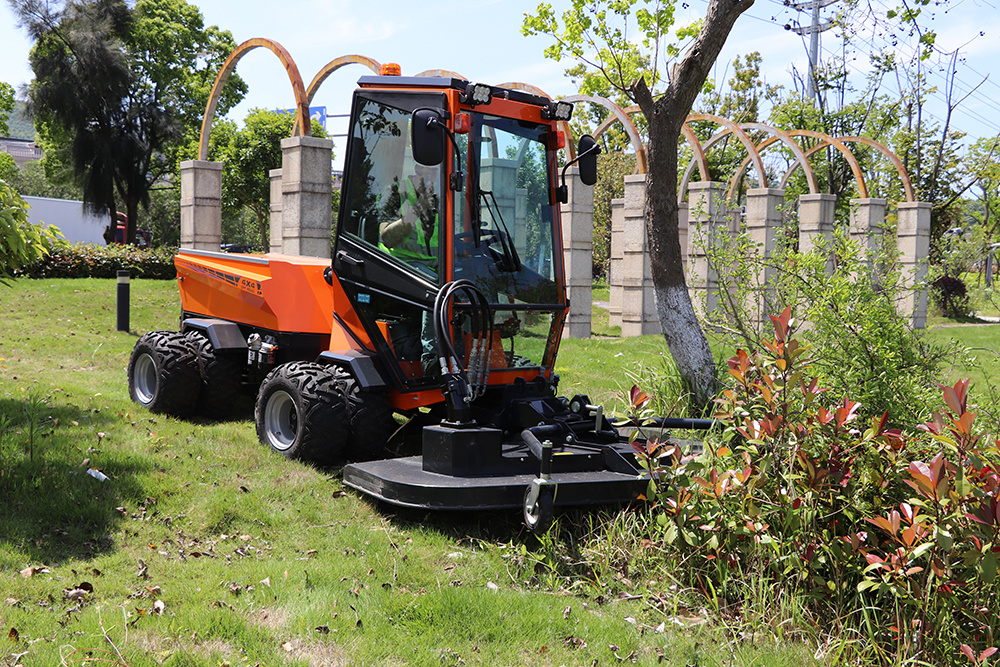

This is a model specially designed for mowing on the slopes on both sides of the river. The engine has been specially modified to adapt to mowing on slopes with a maximum angle of 30 *(30 * is equal to a climbing grade of 58%). The whole machine has a hydrostatic four-wheel drive articulated steering and a single-side double-row wheel design, which can better adapt to slope mowing conditions. The front large-flow hydraulic output increases the hydraulic oil source for the front disc mower. The front three-disc mower is driven by a high-pressure plunger motor. The mowing height of the mower can be adjusted manually, and the mower is designed with a built-in floating function.
V30 slope mower
Catalog：
This is a model specially designed for mowing on the slopes on both sides of the river. The engine has been specially modified to adapt to mowing on slopes with a maximum angle of 30 *(30 * is equal to a climbing grade of 58%).
keyword：Snow Blade
Detail
PRODUCT FEATURES
Technical Parameters
| Item | Parameter |
| driver | Four cylinder diesel engine |
| power | 50HP |
| Length ×Width XHeight | 3900*2000*1960mm |
| Walking mode | Hydrostatic four-wheel drive |
| Walking speed | 0-15km/h |
| Speed regulation method | Infinitely variable speed |
| Steering mode | Fully hydraulic articulated steering |
| Turning radius | 3000mm |
| Transmission mode | Fully hydraulic |
| Mowing width | 1950mm |
| Mower mechanism | Three disc knife |
| Overall weight | 1350kg |
