PRODUCT FEATURES
CityEIf-YJ2190 is a multifunctional diesel small sweeper. It is equipped with a fully hydraulic walking chassis and has powerful adaptability to the cleaning environment.
It is suitable for municipal sanitation road cleaning, construction sites, parks, city squares, residential areas, school factories, industrial and mining enterprises, etc. The powerful hydraulic power sweeping brush cleaning and fuel economy bring value-for-money economic benefits to outdoor area cleaning.
The main machine can be quickly and easily converted into a sweeper, replaced with winter auxiliary tools and lawn machinery for green space maintenance and road cleaning. There are various auxiliary tools and upper structures available to meet the challenges of different operating requirements in various seasons. The panoramic cab allows the driver to see the brush edge during cleaning work. The clear working field ensures the edge cleaning ability and is the premise of work safety.
One machine for multiple purposes This sweeper is designed with multiple hydraulic outputs and electronic control outputs to provide hydraulic oil source and control circuit for work aids. The installation mechanism is designed as a quick-install structure, and one person can complete the installation and removal of all work aids.
Application extension The quick installation hydraulic output interface can provide unlimited possibilities for the design and expansion of multiple auxiliary tools and new auxiliary tools.
Friendly after-sales service The convenience of maintenance and repair has been fully considered when designing this sweeper. After nearly ten years of production and sales, we have sufficient after-sales maintenance experience for this sweeper.
Compact and flexible The agile body combined with the articulated steering chassis with clear direction provides the prerequisite for working in narrow areas, and the hydrostatic four-wheel drive chassis with excellent micro-motion performance is the guarantee for cleaning close to the edge in narrow areas.
Technical Parameters
| Item |
Parameter |
| External dimensions |
3080*1160*1950mm |
| Power |
Diesel engine |
| Driving method |
Hydrostatic four-wheel drive |
| Steering mode |
Hydraulic articulated steering |
| Operational principle |
Sweeping suction type |
| Cleaning width |
Two brushes 1.4m
three brushes 1.9m |
| Garbage dumping method |
Hydraulic high-level self unloading |
| Turning radius (outer drive wheel) |
1900mm |
| Maximum cleaning speed |
8km/h |
| Maximum driving speed |
15km/h |
Snow removal roller brush The front snow removal roller brush is a typical auxiliary tool for the main machine, and can be quickly disassembled and assembled with the main machine without tools. The hydraulic motor drives the snow removal roller brush with strong power and stable quality. The hydraulic cylinder can flexibly control the left and right swing angles. It is often used for snow removal in narrow areas such as residential areas, sidewalks, and non-motorized vehicle lanes.

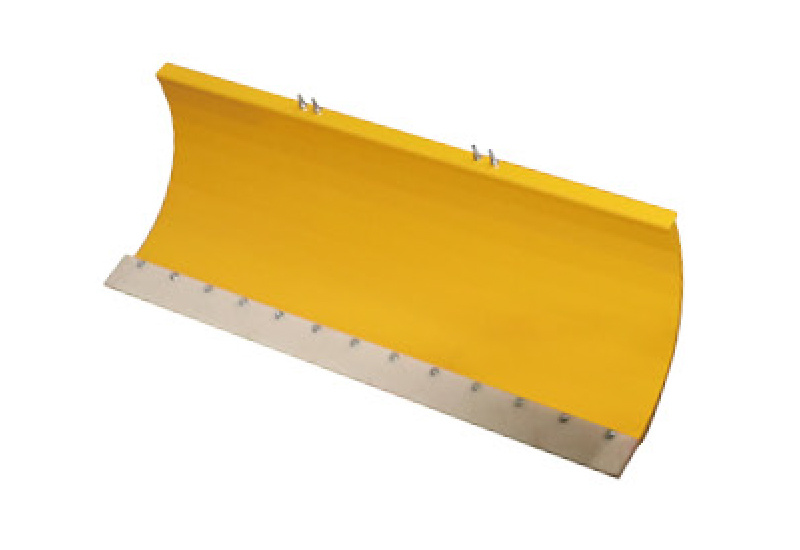

Integrated snow pushing shovel The integrated snow pusher has a simple structure and is economical to manufacture. It is the first choice for snow shoveling in small areas in winter. It is designed with a mechanical spring obstacle avoidance mechanism, and the shovel blade can be made of wear-resistant nylon or wear-resistant steel plate.

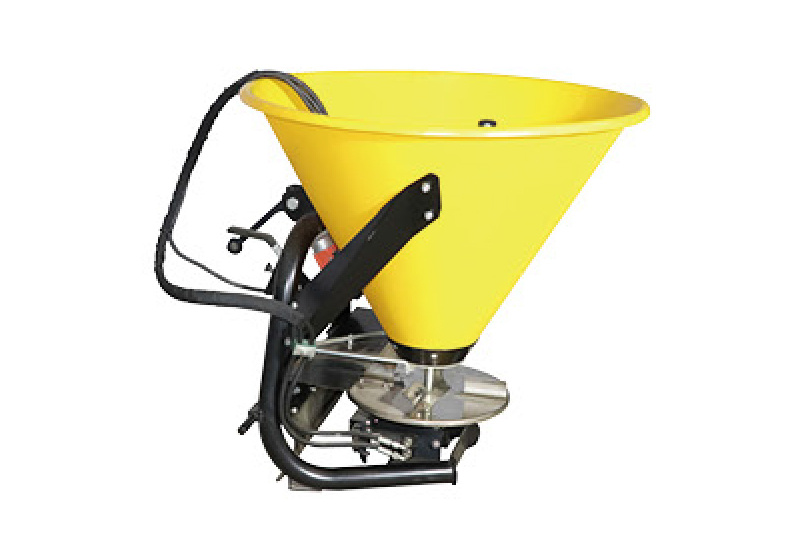

Snow melting agent spreader The deicing agent spreader has a simple and sturdy structure and a sophisticated design. It can control the left and right side spreading and the rear side spreading. The deicing agent storage bucket is integrally rotomolded, and the spreading plate is made of stainless steel, fully considering the lightweight and corrosion resistance.

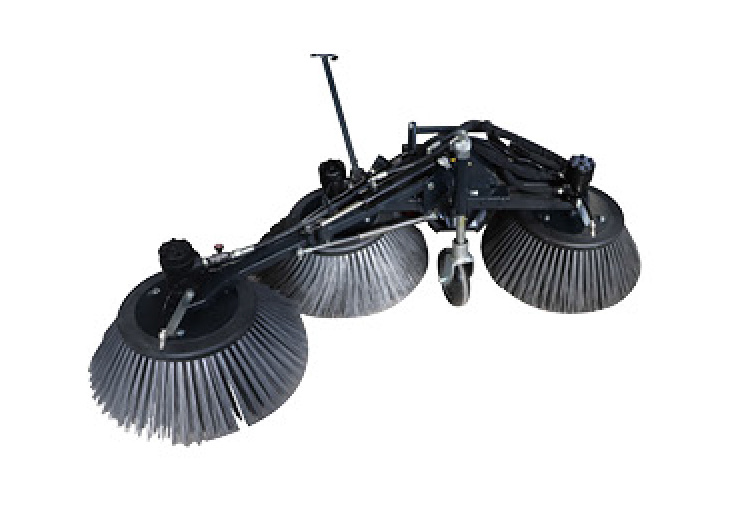

Scanning and brushing The third sweeping brush can be quickly connected to each YJ2190 two-brush standard sweeping brush mechanism with only one fixing bolt. The extension and retraction of the third sweeping brush can be controlled in the cab. The third sweeping brush can increase the sweeping width of the sweeper and further increase the side cleaning ability. It is designed with a side gas spring anti-collision mechanism.

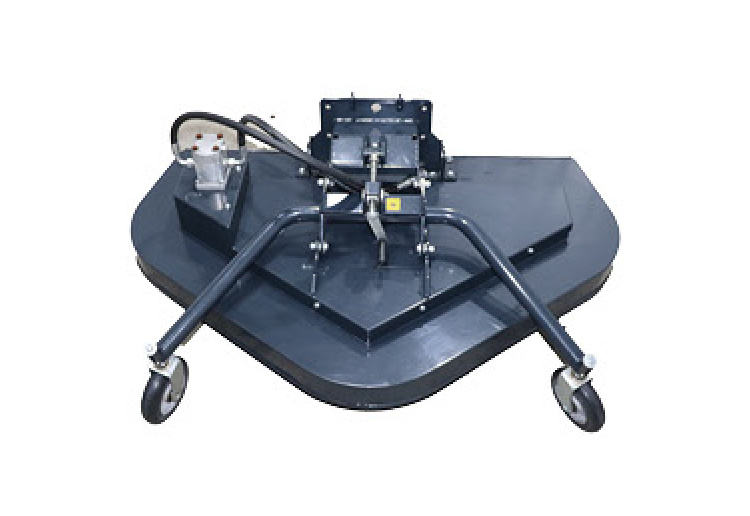

Front three disc lawn mower The front three-disc mower is driven by a hydraulic motor. The mowing height can be adjusted manually and the mower is designed with a built-in floating function.
Handheld extended straw The handheld extension straw is an integral backpack structure and can be easily disassembled. By using the vacuum negative pressure in the trash can, the handheld straw can be connected to the right side of the trash can to clean up fallen leaves and other garbage in green belts, ditches and other places where the sweeper is difficult to enter.

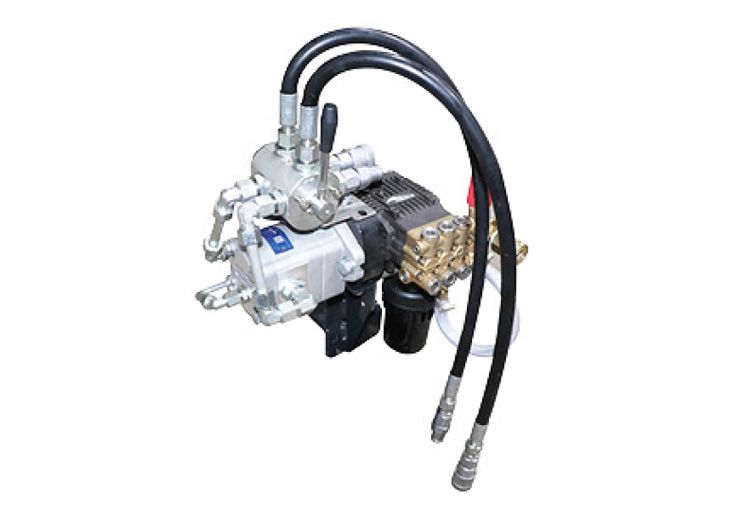

Front hydraulic water pump The three-plunger high-pressure water pump is driven by a gear motor, sharing the hydraulic oil source of the sweeping motor, switched by a manual valve, and connected by a hydraulic quick structure. The hydraulic water pump assembly can be easily disassembled as a whole, and the hydraulic water pump assembly includes a hydraulic motor, a high-pressure water pump, a switching hydraulic valve, a water filter, etc.
