PRODUCT FEATURES
CityElf-E800 pure electric multifunctional sweeper is the most popular model in the municipal sanitation cleaning system. It has the flexibility of a small outdoor sweeper and the cleaning ability of a large sweeper.
The machine is designed to be multifunctional, providing more comfort, safety and economic benefits, whether it is used exclusively for cleaning or as a multifunctional host for all-season applications. There are various auxiliary units for cleaning, high-pressure road cleaning, and winter snow removal.
The E800 uses a sewage recycling water system with low water consumption and good dust suppression effect.The floating air intake design ensures maximum wind speed no matter how uneven the road surface is, achieving perfect cleaning results. Pure electricity and unique fan position design can achieve zero emissions and optimize air flow to reduce noise, thereby improving the quality of life of operators and residents.
One machine for multiple purposes This sweeper is designed with multiple hydraulic outputs and electronic control outputs to provide hydraulic oil source and control circuit for work aids. The installation mechanism is designed as a quick-install structure, and one person can complete the installation and removal of all work aids.
Friendly after-sales service The convenience of maintenance and repair has been fully considered when designing this sweeper. After nearly ten years of production and sales, we have sufficient after-sales maintenance experience for this sweeper.
Application extension The quick installation hydraulic output interface can provide unlimited possibilities for the design and expansion of multiple auxiliary tools and new auxiliary tools.
Safety performance The panoramic cab design has a good driving view, which is the guarantee of safe driving for cleaning vehicles.The E800 cab has a large area of glass, a good view and a comfortable driving seat. The articulated steering chassis has light steering control and good steering performance.
Technical Parameters
| Item |
Parameter |
| External dimensions (length xwidth x height) |
3720*1190*2090mm(excluding brushes) |
| Power |
Lithium iron phosphate battery pack |
| Driving method |
Pure electric rear axle drive |
| Steering mode |
Fully hydraulic articulated steering |
| operational principle |
Sweeping suction type |
| Cleaning width |
1850mm |
| Garbage dumping method |
Hydraulic high-level self unloading |
| Minimum turning radius(outer edge of tire) |
1050mm |
| Maximum cleaning speed |
8km/h |
| Maximum driving speed |
20km/h |
| Gradient |
25% |

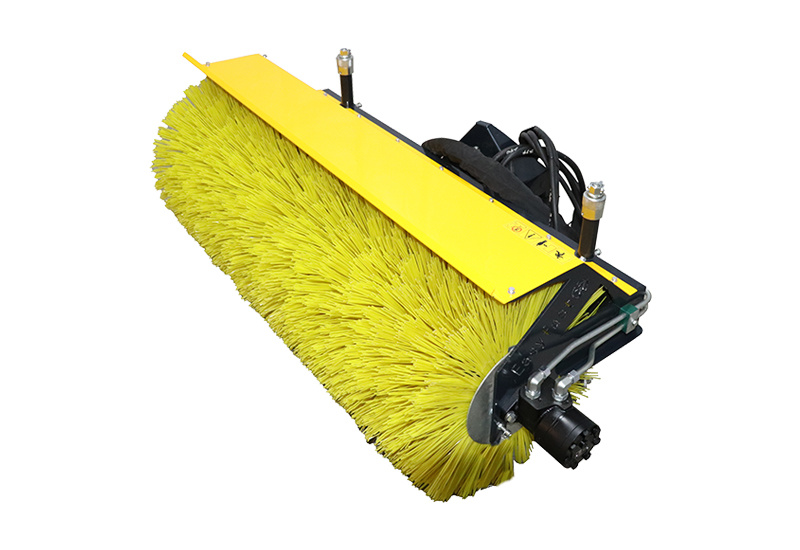

Snow removal roller brush The front snow removal roller brush is a typical auxiliary tool for the main machine, and can be quickly disassembled and assembled with the main machine without tools. The hydraulic motor drives the snow removal roller brush with strong power and stable quality. The hydraulic cylinder can flexibly control the left and right swing angles. It is often used for snow removal in narrow areas such as residential areas, sidewalks, and non-motorized vehicle lanes.
Integrated snow pushing shovel The integrated snow pusher has a simple structure and is economical to manufacture. It is the first choice for snow shoveling in small areas in winter. It is designed with a mechanical spring obstacle avoidance mechanism, and the shovel blade can be made of wear-resistant nylon or wear-resistant steel plate.
Snow melting agent spreader The deicing agent spreader has a simple and sturdy structure and a sophisticated design. It can control the left and right side spreading and the rear side spreading. The deicing agent storage bucket is integrally rotomolded, and the spreading plate is made of stainless steel, fully considering the lightweight and corrosion resistance.

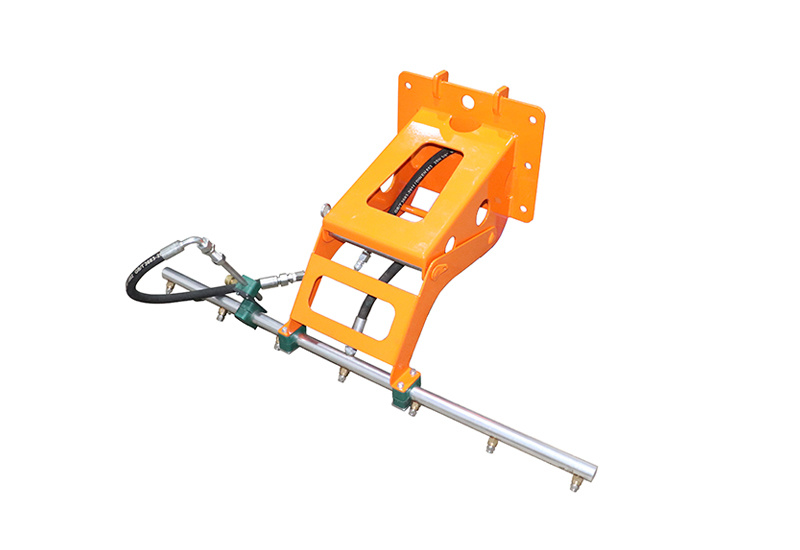

Flushing rod The high-pressure water spray bar with adjustable height is a good helper for cleaning urban roads. It is also designed with side-spraying high-pressure nozzles.
Wash the floor The automatic rotating high-pressure cleaning disc can effectively prevent sewage from splashing. When used with the vacuum system of the sweeper, it can effectively collect sewage to prevent secondary pollution caused by sewage. It is often used for cleaning the ground in city squares and parks, and is an essential tool for the city's "sit on the ground" campaign.
