V25 Multi-Purpose Snow Remover
Catalog：
The CityELF-V25 multifunctional snow removal vehicle is a powerful tool for removing snow on sidewalks, roads, parking lots, squares, and other places.
keyword：Snow Blade
Detail
PRODUCT FEATURES
Strong power The small machine has high horsepower. The whole machine is equipped with a 50-horsepower four-cylinder diesel engine as a standard power source. It has a large front flow output and can easily drive a 1.5m sweeping snow removal roller brush and snow thrower.
Easy to operate The whole machine is easy to operate, with forward and reverse movement controlled by a set of pedals, infinitely variable speed drive, and good micro-motion performance. The articulated steering chassis has good steering performance.
Driving comfort The V25 multifunctional snow removal vehicle is equipped with a heater as standard, providing you with a comfortable driving environment when performing snow removal operations in winter. The V25 has a good operating field of vision, and the driver can clearly see the edge of the vehicle when performing snow removal operations, making snow removal operations safe and comfortable.
One machine for multiple purposes This snowplow is designed with multiple hydraulic outputs and electronic control outputs to provide hydraulic oil source and control circuits for work aids. The installation mechanism is designed as a quick-install structure, and one person can complete the installation and removal of all work aids.
Friendly after-sales service The convenience of maintenance and repair has been fully considered when designing this snowplow. After nearly ten years of production and sales, we have sufficient after-sales maintenance experience for this snowplow.
Application extension The quick installation hydraulic output interface can provide unlimited possibilities for the design and expansion of multiple auxiliary tools and new auxiliary tools.
Safety performance The hydrostatic four-wheel drive chassis has excellent micro-motion performance and excellent braking effect.The articulated steering chassis has good steering performance.
Compact and flexible The agile body combined with the articulated steering chassis with clear direction provides the premise for snow removal in narrow areas, and the hydrostatic four-wheel drive chassis with excellent micro-movement performance is the guarantee for snow removal along the edge of narrow areas. V25 is your best choice for snow removal in narrow areas or small areas.
Technical Parameters
| Item | Parameter |
| Drvier | Four cylinder diesel engine |
| Power | 50HP |
 | 3800*1700*1960mm 2870*1200*1960mm |
| Walking mode | Hydrostatic four-wheel drive |
| Walking speed | 0-15km/h |
| Speed regulation method | Infinitely variable speed |
| air-conditioning | Standard heating |
| Steering mode | Fully hydraulic articulated steering |
| Minimum turning radius (outer edge of tire) | 1670mm |
| Transmission mode | Fully hydraulic |
| Snow removal roller brush cleaning width | 1.5m |
| Snow removal brush swing angle | 20° |
| Standard model weight(including snow removal brush) | 1200kg |

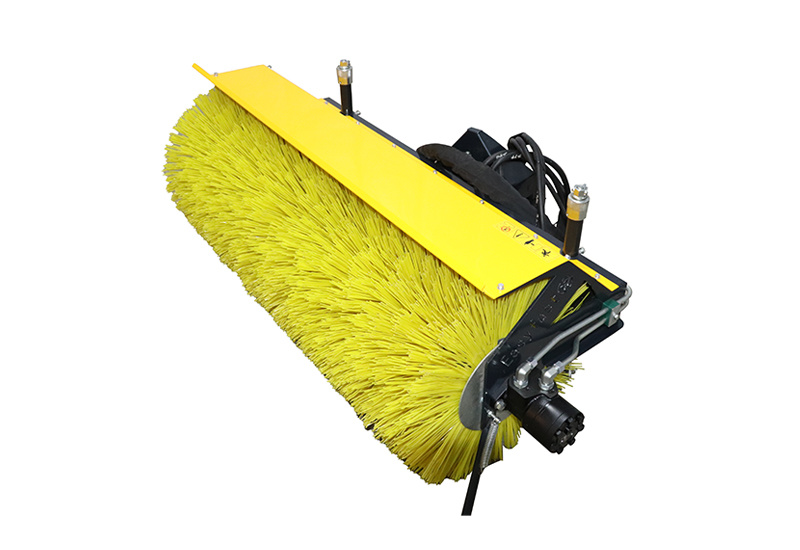

Snow removal roller brush The front snow removal roller brush is a typical auxiliary tool for the main machine, and can be quickly disassembled and assembled with the main machine without tools. The hydraulic motor drives the snow removal roller brush with strong power and stable quality. The hydraulic cylinder can flexibly control the left and right swing angles. It is often used for snow removal in narrow areas such as residential areas, sidewalks, and non-motorized vehicle lanes.

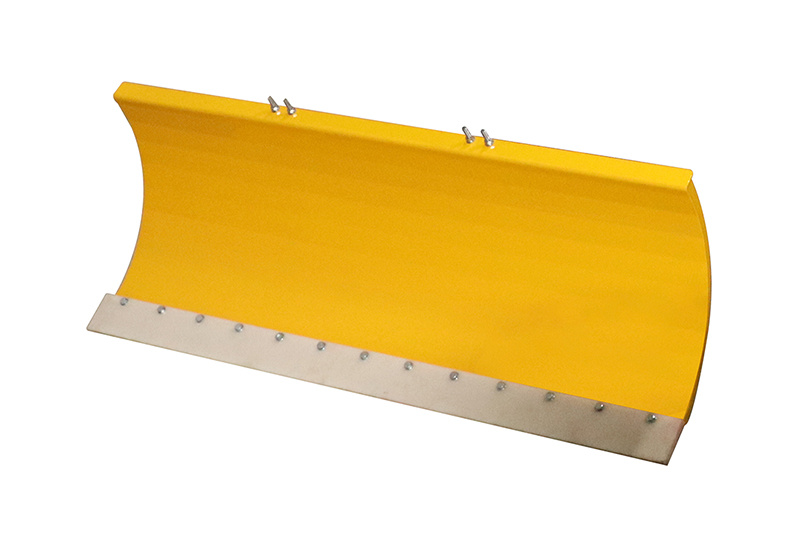

Integrated snow pushing shovel The integrated snow pusher has a simple structure and is economical to manufacture. It is the first choice for snow shoveling in small areas in winter. It is designed with a mechanical spring obstacle avoidance mechanism, and the shovel blade can be made of wear-resistant nylon or wear-resistant steel plate.

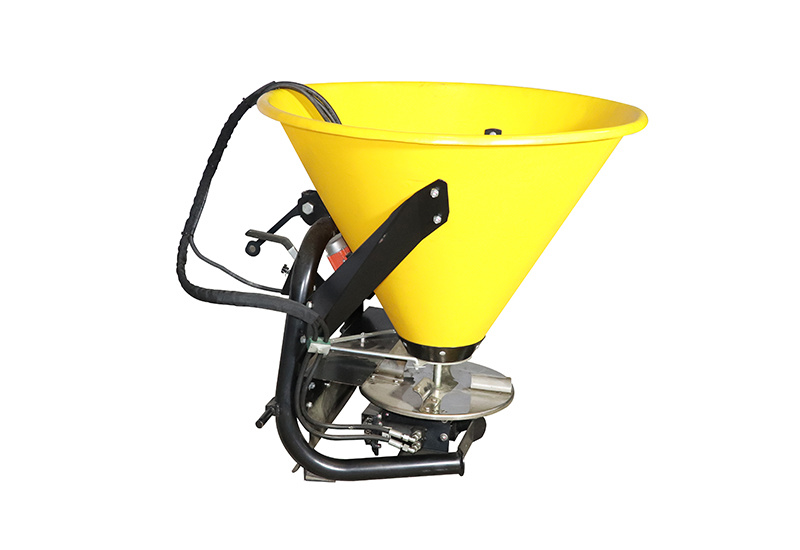

Snow melting agent spreader The deicing agent spreader has a simple and sturdy structure and a sophisticated design. It can control the left and right side spreading and the rear side spreading. The deicing agent storage bucket is integrally rotomolded, and the spreading plate is made of stainless steel, fully considering the lightweight and corrosion resistance.

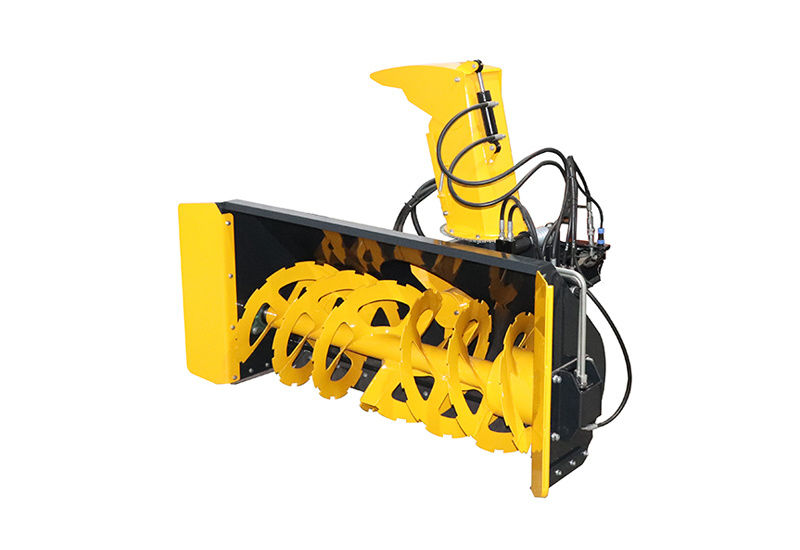

Snow hoist The snow thrower perfectly utilizes the multifunctional characteristics of the main machine, is easy to install, and has strong power. The multi-hydraulic motor full hydraulic design is a guarantee of stable quality, and has a good working field, making it an essential tool for urban snow removal.
V-shaped snow pushing shovel The V-shaped snow shovel is composed of two pieces of snow shovels on the left and right. The two pieces of snow shovels are connected by a pin shaft to form a V-shaped snow shovel, which is convenient for clearing snow piles. The V-shaped snow shovel has a flexible structure and is the first choice for efficient snow shoveling in small areas in winter.

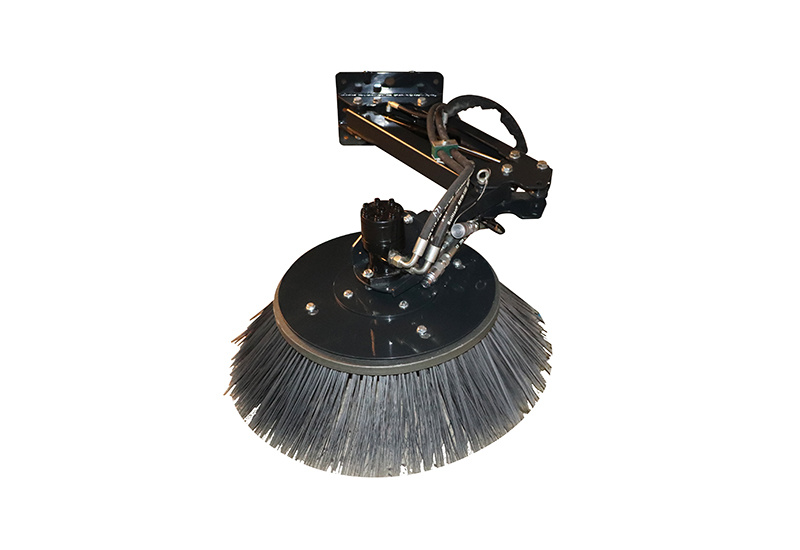

Strong brush Taking full advantage of the high-power hydraulic output oil source of the main machine, the high-torque hydraulic motor drives the wire brush to exert strong torque. It is often used to powerfully clean up moss and weeds on the ground and clear the snow left by large snow-clearing equipment on both sides of the road in winter.

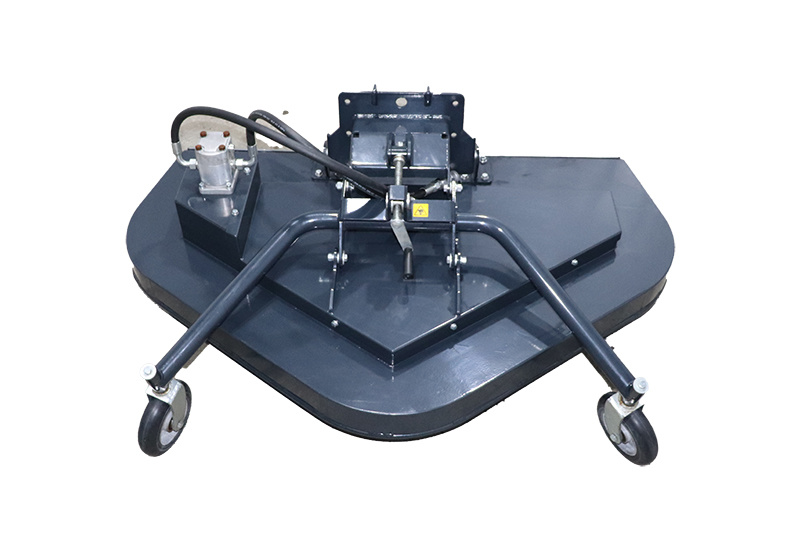

Front three disc lawn mower The front three-disc mower is driven by a hydraulic motor. The mowing height can be adjusted manually and the mower is designed with a built-in floating function.
